North Sonar Full Carbon – Complete Wingboarding Foil Discounts Apply !

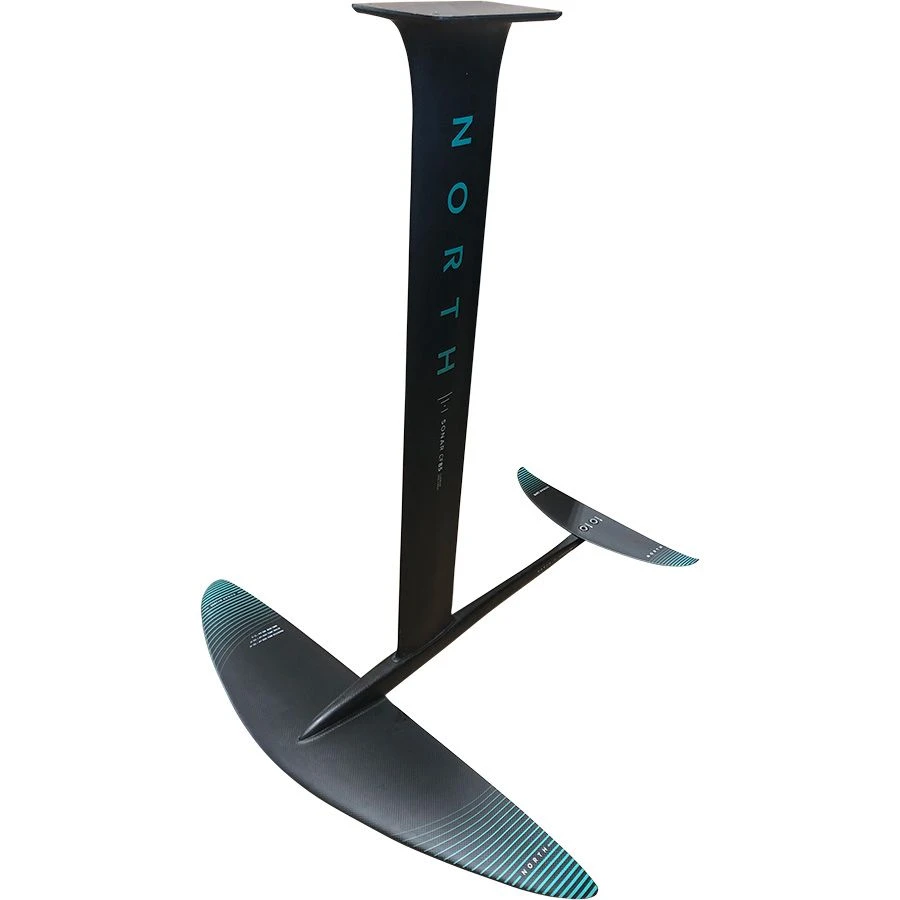

North – Sonar Carbon Foil Edition

Crafted to perfection

Insane response. Incredible performance. Our highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback. Engineered with exceptional stiffness for all disciplines, the CF Edition is made from lightweight and durable carbon pre-preg components and has a reduced swing weight for an agile, dynamic and direct feel, and great pumpability. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction, and features our unique GeoLock system. The longer CF85 mast increases overall ride performance in choppy conditions. The CF72 mast is ideal for shallower waters, prone surf foiling and towing. For 2022 we’ve added stability, performance and efficiency with the 700mm Carbon Pre-Preg Fuselage and new S270 Carbon Pre-preg Stabilizer.

Sizes:

• CF72 – 72cm Mast
• CF85 – 85cm Mast

Comes with:

• Carbon CF72 or CF85 Mast with cover
• C700 Fuselage
• S270 Stabilizer with cover
• Tool Kit, Screw Packs B,C
• Sonar Travel Bag

Key Features:

• Sonar CF85 or CF72 Mast
• GeoLock Load Bearing Connection
• NEW S270 Carbon Stabilizer with easy breach recovery
• Industry-standard 165x90mm bolt pattern
• C700 Carbon Fuselage
• Modular foil system
• Supplied with Sonar CF Edition  Travel Bag
• Front Wings Sold Separately
• Foil to board mounting screws sold separately

Front Wing Options:

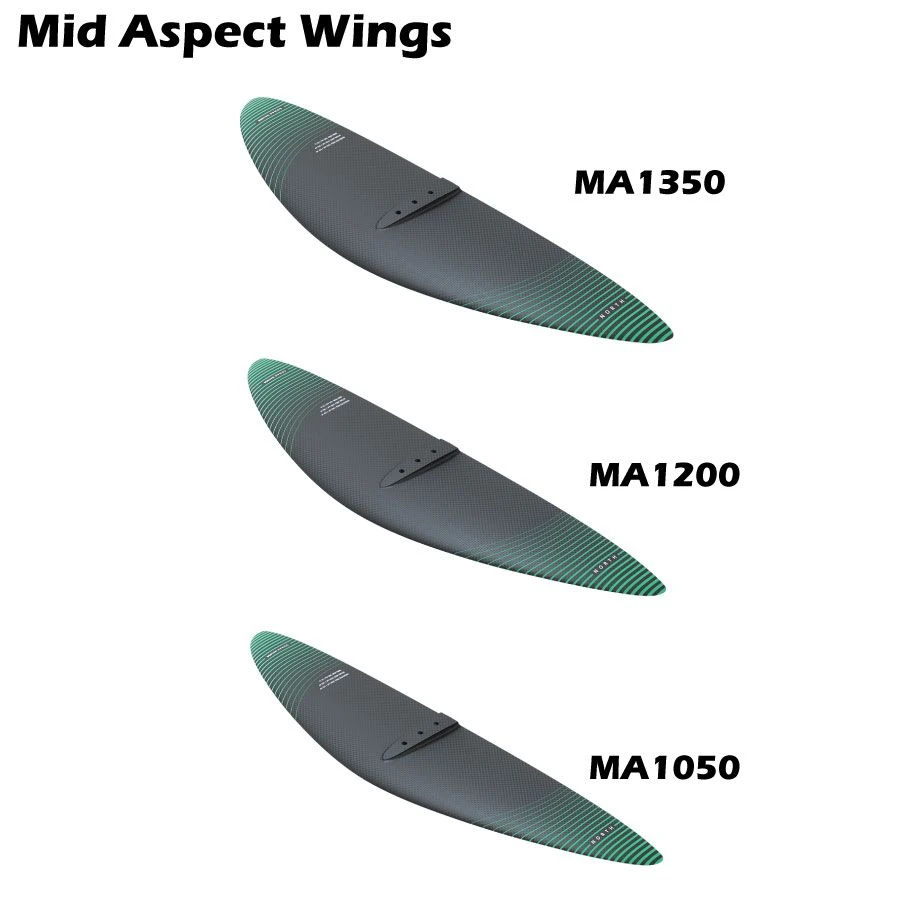

Mid Aspect Front Wings:
MA1050 – The new MA1050 Front Wing is the ultimate for lightweight riders (or for heavier riders on windier days). An agile, fast-turning wing with incredible speed range and  maneuverability. Suitable for Kite, Wing, Surf, Wake and Tow Foiling.
MA1200 – The new MA1200 Front Wing is your go-to wing for when the breeze is up or for bigger waves. Balanced feel and powered-up performance, with exceptional maneuverability. Suitable for Kite, Wing, Surf, Wake and Tow Foiling.
MA1350 – The new MA1300 Front Wing is a mid-aspect ratio wing ideal for all rider weights. High performance and fast turning with thrilling top end speeds. Suitable for Wing, Surf and SUP Foiling.
Sizes: MA1050 | MA1200 | MA 1350

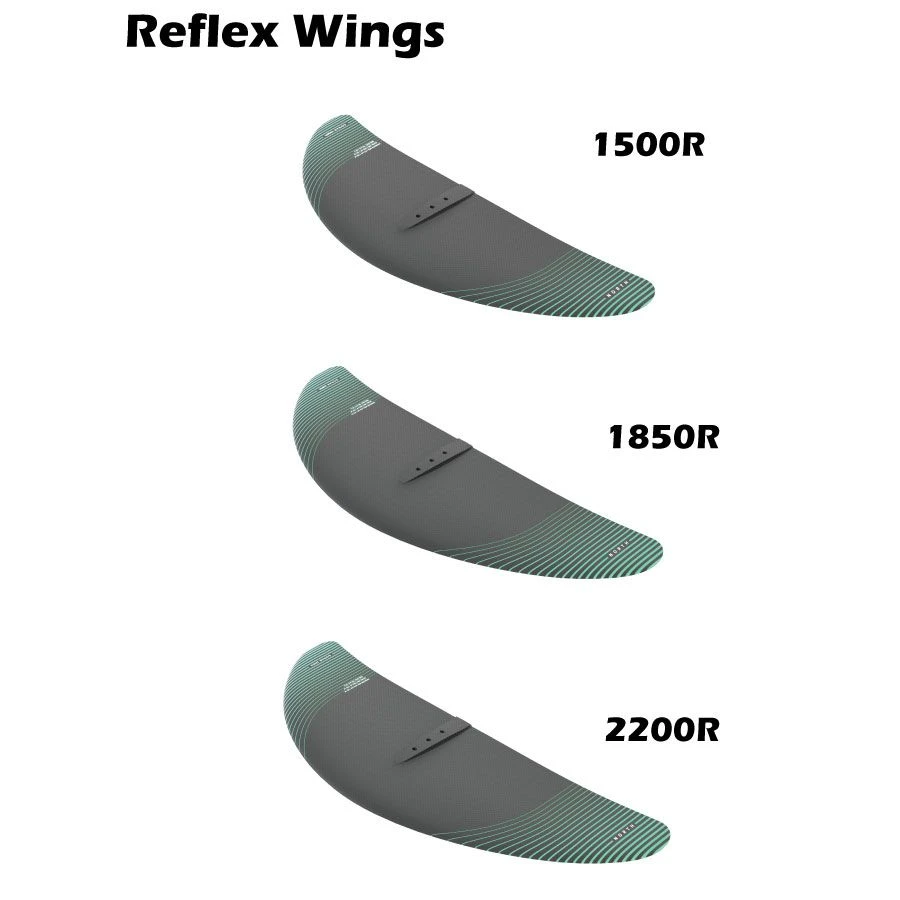

Reflex Front Wings:
Our patent-pending reflexed-camber foil section design gives the wing pitch stability all on its own. It’s like we’ve built a mini-stabilizer into the trailing edge of the wing. The Sonar reflexed wings have a relatively large surface area, which makes them highly controllable, with incredible stability. Usually, a large wing means more drag, hence less speed. But the thin section and lower camber of these wings means they feel smaller than they are in terms of their speed range and responsiveness. They have more control, ride faster and accelerate more quickly than other wings of the same size.
Sizes: 1500R | 1850R | 2200R

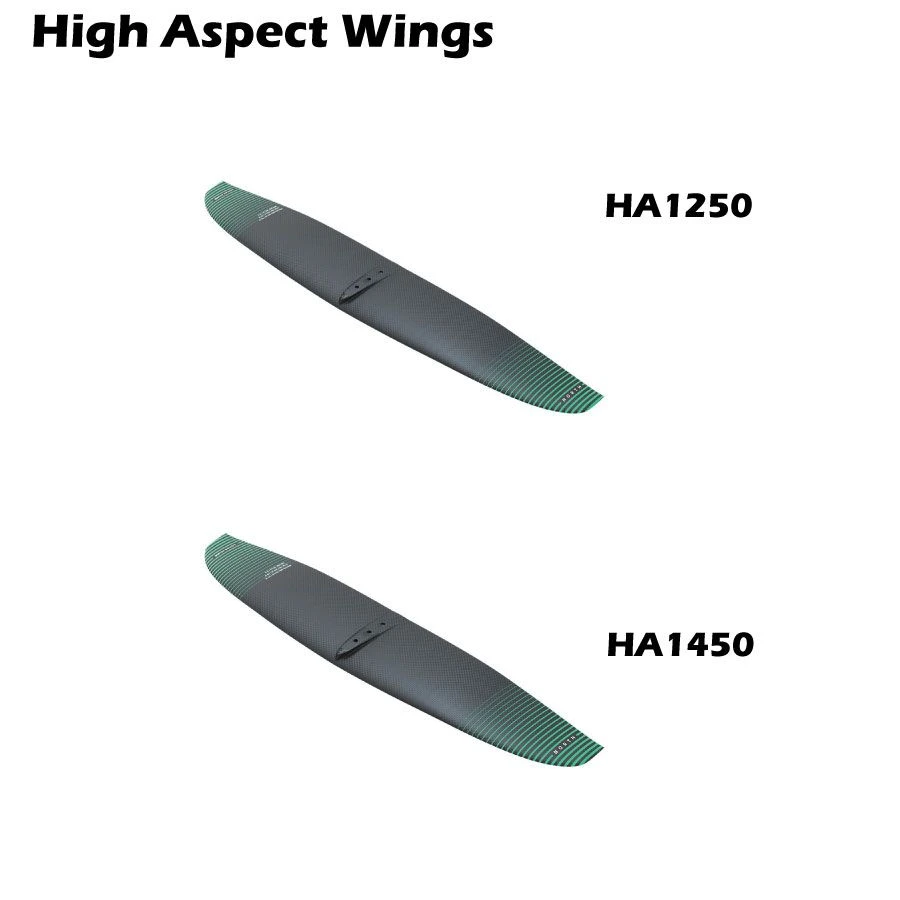

High Aspect Front Wings:
High Aspect Ratio wings provide high lift, speed, glide and pumpability in flat or choppy water. The high aspect Sonar Wing has a high wingspan relative to its area, similar to a sailplane glider wing. With this style of wing, you generate maximum efficiency and lift. The short chord length contributes to a relatively thin profile thickness, and with a thin profile comes reduced drag. The span provides you with the surface area needed and increases the roll stability, with a slightly longer radius turn than a lower aspect ratio wing of the same size.
Sizes: HA1250 | HA1450
